BRIDGE CAP REPLACEMENT - IMAGE FOUR

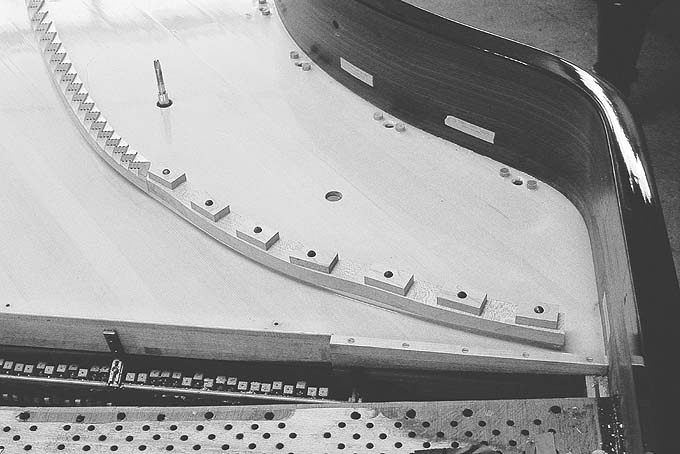

The new bridge cap is glued in position with Titebond.
With reference to the scan, please note the following;

• The screw holes, for 'clamping' the new cap, are positioned clear of the new bridge wood
  which will be supporting the bridge pins.
• When the glue is set, the screws are removed and the holes plugged with 7/32" hard rock maple hammer shanks
  (secured with Titebond).
